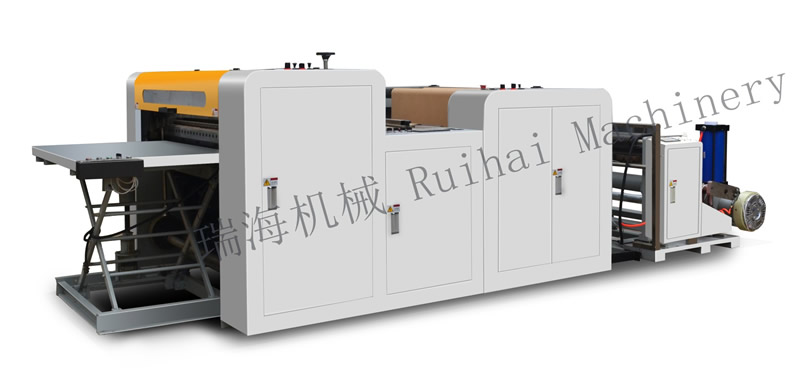

HQJ-D Microcomputer High-precision Crosscutting Machine (With Vertical Cutting)

Name：HQJ-D Microcomputer High-precision Crosscutting Machine (With Vertical Cutting)
No：HQJ-D

Performance and Characteristics

This machine is suitable for cutting big rolling packaging materials such as paper, PVC PET film paper- plastic, multicolor laminated material, etc.
It adopts servo motor (or step motor) for controlling constant-length cutting. It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together, it has the functions of easy operation, high precision, good stability, low noise. (Pneumatic auto loading device is optional) This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.

Main Technical Parameters

Model	HQJ-800D	HQJ-1100D	HQJ-1400D	HQJ-1600D
Max diameter of material	￠1400mm	￠1400mm	￠1400mm	￠1400mm
Max. width of cutting	800mm	1100mm	1400mm	1600mm
Longitudinal slitting width	50mm	50mm	50mm	50mm
Length of cutting	20-1200mm	20-1200mm	20-1200mm	20-1200mm
Precision of fixed length	±0.2mm	±0.2mm	±0.2mm	±0.2mm
Speed	10-150times/min	10-150times/min	10-150times/min	10-150times/min
Total Power	7.5KW	7.5KW	10KW	10KW
Weight (approx.)	1200kg	1700kg	2100kg	2500kg
Overall dimension(L×W×H)	5000×1600×1200(mm)	5000×1900×1200(mm)	5500×2200×1200(mm)	5500×2500×1200(mm)
