Automatic High-precision Cross& Vertical cutting machine(A3/A4) with 2 roll

Performance and Characteristics

This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic,photo paper material,etc.

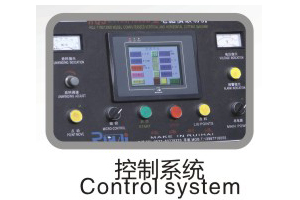

• It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
• It adopts pneumatic,photoelectric sensor for controlling transminssion system, with photo,electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.

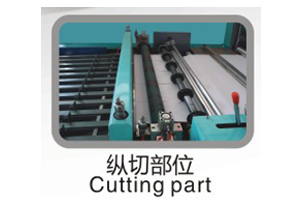

• This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.
• This machine can be with 1 roll.2roll.4roll loading systerm.

Main Technical Parameters

Model	HQJ-1100D(Two roll)	HQJ-1400D(Two roll)
Max.width of cutting	1100mm	1400mm
Max diameter of material	φ1400mm	φ1400mm
Min.width of cutting	50mm	50mm
Length of cutting	20-400mm	20-400mm
Speed	10-140times/min	10-140times/min
Precision	±0.2mm	±0.2mm
Total Power	9.5kw	11kw
Weight	3500kg	4000kg
Overall dimension(LxWxH)	8600x1500x2000mm	8600x1800x2000mm
